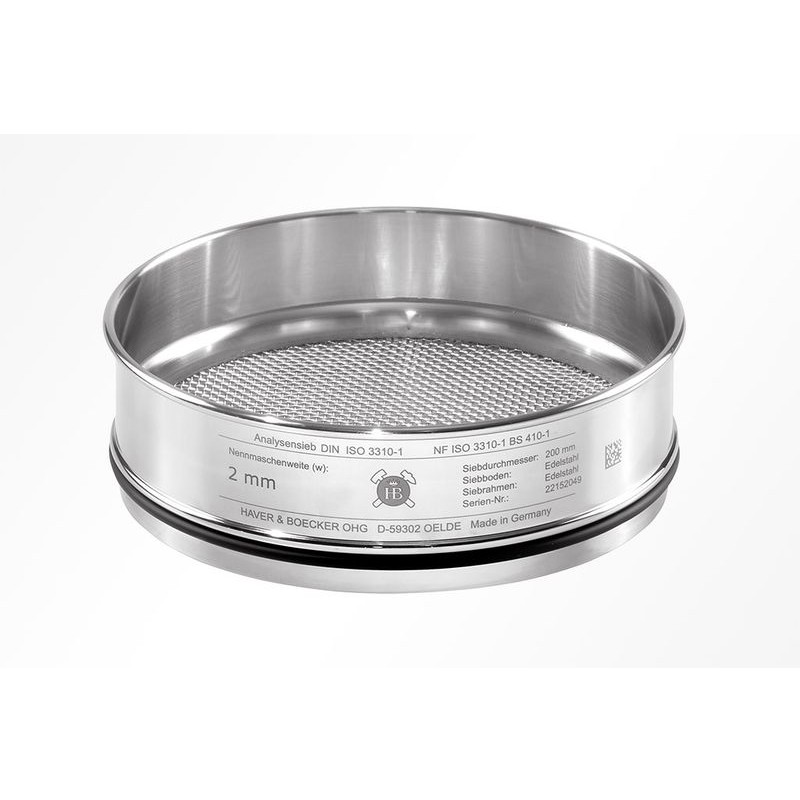

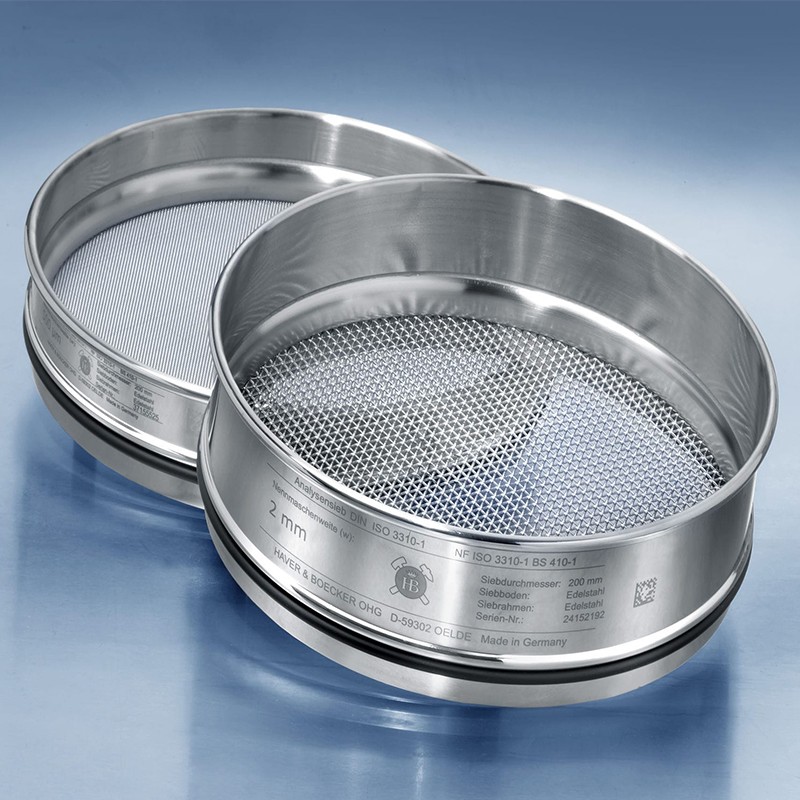

Sita HAVER 300

Name: Sita HAVER 300
SKU: 462

HAVER sita sa ramovima od nerđajućeg čelika opremljena su tkaninom od žice ili robusnim pločama sa kvadratnim perforacijama prema DIN ISO 3310. Posebno glatka površina ramova sprečava kontaminaciju materijala a izuzetno stabilna struktura sita garantuje dugotrajnost u korišćenju. Mreža sita zadržava napetost izuzetno dobro i nakon intenzivne upotrebe.

Prečnik sita: 300mm
Visina sita: 60mm

SKU: 462 Category: Agregati

proizvod
tehnički list

proizvod

GRANULACIJA	100 MM	150 MM	200 MM	250 MM	300 MM	315 MM	400 MM
20 um	C45-01	E50-01	F50-01	G55-01	H60-01	K75-01	M65-01
25 um	C45-02	E50-02	F50-02	G55-02	H60-02	K75-02	M65-02
32 um	C45-03	E50-03	F50-03	G55-03	H60-03	K75-03	M65-03
36 um	C45-04	E50-04	F50-04	G55-04	H60-04	K75-04	M65-04
38 um	C45-05	E50-05	F50-05	G55-05	H60-05	K75-05	M65-05
40 um	C45-06	E50-06	F50-06	G55-06	H60-06	K75-06	M65-06
45 um	C45-07	E50-07	F50-07	G55-07	H60-07	K75-07	M65-07
50 um	C45-08	E50-08	F50-08	G55-08	H60-08	K75-08	M65-08
53 um	C45-09	E50-09	F50-09	G55-09	H60-09	K75-09	M65-09
56 um	C45-10	E50-10	F50-10	G55-10	H60-10	K75-10	M65-10
63 um	C45-11	E50-11	F50-11	G55-11	H60-11	K75-11	M65-11
71 um	C45-12	E50-12	F50-12	G55-12	H60-12	K75-12	M65-12
75 um	C45-13	E50-13	F50-13	G55-13	H60-13	K75-13	M65-13
80 um	C45-14	E50-14	F50-14	G55-14	H60-14	K75-14	M65-14
90 um	C45-15	E50-15	F50-15	G55-15	H60-15	K75-15	M65-15
100 um	C45-16	E50-16	F50-16	G55-16	H60-16	K75-16	M65-16
106 um	C45-17	E50-17	F50-17	G55-17	H60-17	K75-17	M65-17
112 um	C45-18	E50-18	F50-18	G55-18	H60-18	K75-18	M65-18
125 um	C45-19	E50-19	F50-19	G55-19	H60-19	K75-19	M65-19
140 um	C45-20	E50-20	F50-20	G55-20	H60-20	K75-20	M65-20
150 um	C45-21	E50-21	F50-21	G55-21	H60-21	K75-21	M65-21
160 um	C45-22	E50-22	F50-22	G55-22	H60-22	K75-22	M65-22
180 um	C45-23	E50-23	F50-23	G55-23	H60-23	K75-23	M65-23
200 um	C45-24	E50-24	F50-24	G55-24	H60-24	K75-24	M65-24
212 um	C45-25	E50-25	F50-25	G55-25	H60-25	K75-25	M65-25
224 um	C45-26	E50-26	F50-26	G55-26	H60-26	K75-26	M65-26
250 um	C45-27	E50-27	F50-27	G55-27	H60-27	K75-27	M65-27
280 um	C45-28	E50-28	F50-28	G55-28	H60-28	K75-28	M65-28
300 um	C45-29	E50-29	F50-29	G55-29	H60-29	K75-29	M65-29
315 um	C45-30	E50-30	F50-30	G55-30	H60-30	K75-30	M65-30
355 um	C45-31	E50-31	F50-31	G55-31	H60-31	K75-31	M65-31
400 um	C45-32	E50-32	F50-32	G55-32	H60-32	K75-32	M65-32
425 um	C45-33	E50-33	F50-33	G55-33	H60-33	K75-33	M65-33
450 um	C45-34	E50-34	F50-34	G55-34	H60-34	K75-34	M65-34
500 um	C45-35	E50-35	F50-35	G55-35	H60-35	K75-35	M65-35
560 um	C45-36	E50-36	F50-36	G55-36	H60-36	K75-36	M65-36
600 um	C45-37	E50-37	F50-37	G55-37	H60-37	K75-37	M65-37
630 um	C45-38	E50-38	F50-38	G55-38	H60-38	K75-38	M65-38
710 um	C45-39	E50-39	F50-39	G55-39	H60-39	K75-39	M65-39
800 um	C45-40	E50-40	F50-40	G55-40	H60-40	K75-40	M65-40
850 um	C45-41	E50-41	F50-41	G55-41	H60-41	K75-41	M65-41
900 um	C45-42	E50-42	F50-42	G55-42	H60-42	K75-42	M65-42
1.00 mm	C45-43	E50-43	F50-43	G55-43	H60-43	K75-43	M65-43
1.12 mm	C45-44	E50-44	F50-44	G55-44	H60-44	K75-44	M65-44
1.18 mm	C45-45	E50-45	F50-45	G55-45	H60-45	K75-45	M65-45
1.25 mm	C45-46	E50-46	F50-46	G55-46	H60-46	K75-46	M65-46
1.40 mm	C45-47	E50-47	F50-47	G55-47	H60-47	K75-47	M65-47
1.60 mm	C45-48	E50-48	F50-48	G55-48	H60-48	K75-48	M65-48
1.70 mm	C45-49	E50-49	F50-49	G55-49	H60-49	K75-49	M65-49
1.80 mm	C45-50	E50-50	F50-50	G55-50	H60-50	K75-50	M65-50
2.00 mm	C45-51	E50-51	F50-51	G55-51	H60-51	K75-51	M65-51
2.24 mm	C45-52	E50-52	F50-52	G55-52	H60-52	K75-52	M65-52
2.36 mm	C45-53	E50-53	F50-53	G55-53	H60-53	K75-53	M65-53
2.50 mm	C45-54	E50-54	F50-54	G55-54	H60-54	K75-54	M65-54
2.80 mm			F50-55	G55-55	H60-55	K75-55	M65-55
3.15 mm			F50-56	G55-56	H60-56	K75-56	M65-56
3.35 mm			F50-57	G55-57	H60-57	K75-57	M65-57
3.55 mm			F50-58	G55-58	H60-58	K75-58	M65-58
4.00 mm			F50-59	G55-59	H60-59	K75-59	M65-59
4.50 mm			F50-60	G55-60	H60-60	K75-60	M65-60
4.75 mm			F50-61	G55-61	H60-61	K75-61	M65-61
5.00 mm			F50-62	G55-62	H60-62	K75-62	M65-62
5.60 mm			F50-63	G55-63	H60-63	K75-63	M65-63
6.30 mm			F50-64	G55-64	H60-64	K75-64	M65-64
6.70 mm			F50-65	G55-65	H60-65	K75-65	M65-65
7.10 mm			F50-66	G55-66	H60-66	K75-66	M65-66
8.00 mm			F50-67	G55-67	H60-67	K75-67	M65-67
9.00 mm			F50-68	G55-68	H60-68	K75-68	M65-68
9.50 mm			F50-69	G55-69	H60-69	K75-69	M65-69
10.0 mm			F50-70	G55-70	H60-70	K75-70	M65-70
11.2 mm			F50-71	G55-71	H60-71	K75-71	M65-71
12.5 mm			F50-72	G55-72	H60-72	K75-72	M65-72
13.2 mm			F50-73	G55-73	H60-73	K75-73	M65-73
14.0 mm			F50-74	G55-74	H60-74	K75-74	M65-74
16.0 mm			F50-75	G55-75	H60-75	K75-75	M65-75
18.0 mm			F50-76	G55-76	H60-76	K75-76	M65-76
19.0 mm			F50-77	G55-77	H60-77	K75-77	M65-77
20.0 mm			F50-78	G55-78	H60-78	K75-78	M65-78
22.4 mm			F50-79	G55-79	H60-79	K75-79	M65-79
25.0 mm			F50-80	G55-80	H60-80	K75-80	M65-80
26.5 mm			F50-81	G55-81	H60-81	K75-81	M65-81
25.0 mm			F50-82	G55-82	H60-82	K75-82	M65-82
31.5 mm			F50-83	G55-83	H60-83	K75-83	M65-83
35.5 mm			F50-84	G55-84	H60-84	K75-84	M65-84
37.5 mm			F50-85	G55-85	H60-85	K75-85	M65-85
40.0 mm			F50-86	G55-86	H60-86	K75-86	M65-86
45.0 mm			F50-87	G55-87	H60-87	K75-87	M65-87
50.0 mm			F50-88	G55-88	H60-88	K75-88	M65-88
53.0 mm			F50-89	G55-89	H60-89	K75-89	M65-89
56.0 mm			F50-90	G55-90	H60-90	K75-90	M65-90
63.0 mm			F50-91	G55-91	H60-91	K75-91	M65-91
71.0 mm			F50-92	G55-92	H60-92	K75-92	M65-92
75.0 mm			F50-93	G55-93	H60-93	K75-93	M65-93
80.0 mm			F50-94	G55-94	H60-94	K75-94	M65-94
90.0 mm			F50-95	G55-95	H60-95	K75-95	M65-95
100.0 mm			F50-96	G55-96	H60-96	K75-96	M65-96
106.0 mm			F50-97	G55-97	H60-97	K75-97	M65-97
112.0 mm			F50-98	G55-98	H60-98	K75-98	M65-98
125.0 mm			F50-99	G55-99	H60-99	K75-99	M65-99

Poklopac	D100-L	D150-L	D200-L	D250-L	D300-L	D315-L	D400-L
Posuda	D100-R	D150-R	D200-R	D250-R	D300-R	D315-R	D400-R
